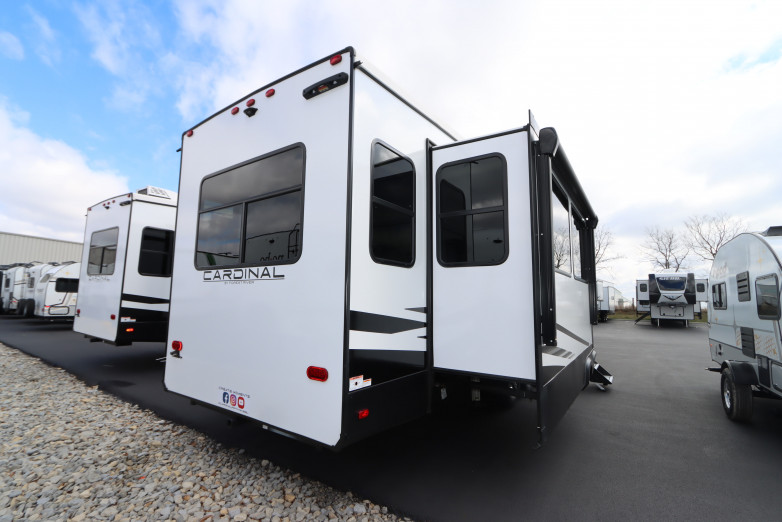

• 2023 Cardinal Limited 367DVLE by Forest River

  Cardinal is exquisitely crafted and grandly appointed. As you enjoy the awe-inspiring sights outside your RV door, you can also revel in the luxurious ambiance of your Cardinal home.

  Equipment

  Interior Decor: Elliot Slate

  • Cardinal Limited Package
    • Single Bowl, Stainless Steel Sink
    • 22” 2-in-1 Range And Oven
    • Hidden Hinge Cabinetry
    • Z-Frame Construction
    • Ground Control 3.0 Auto Leveling
    • Hard Wood Slide Fascia
    • Front, Walk-In Closet
    • Ceiling Fan
    • Rhino Pin Box
    • Night Roller Shades
    • 4 Residential Dinette Chairs W/ Storage
    • G Rated Tires
  • Limited Extended Seasons Camping Package
    • 12v Heat Pads W/ Underbelly Ducted Heat
    • 35k Btu Furnace
    • 15k Btu Main A/c & Bedroom A/C
    • 10 Gallon Gas/electric Quick Recovery Water Heater
    • Exterior Ventilated Attic For Breathable Roof
    • Electric Fireplace Living Room
    • Full Pass Thru Front Storage W/ Forced Air Heat
    • Sidewalls: 2” High Density Block Foam Insulation (R-9)
    • Roof: Fiberglass And Foil Insulation (ER38)
    • Floor: Fiberglass And Foil Insulation (ER38)
  • Limited Essentials Package
    • Vacuum Bonded, Welded Aluminum Structure
    • 5/8” Tongue And Groove Plywood Floor
    • Solid Surface Kitchen Countertops
    • Stackable Washer/dryer Prep
    • Winegard 360+ (AM/FM, TV Antenna W/ 4G & Wifi Extender Prep)
    • LCI Solid Step
    • 7k Axles
    • Rear Camera Prep
    • Solar Panel Prep
    • Dual Awnings W/ LED Light Strip (Most Models)
    • 2” Accessory Receiver
    • 32” Friction Hinged Entry Door
    • 72x80 King Bed W/ 110 Outlets On Sides
  • Free Standing Dinette
  • RVIA Seal

  The RV Nation Advantage Features included with every new RV Purchase!

  • 12V Deep Cycle Battery - Free!
  • Propane in Tanks - Free!
  • Dealer Prep - Free!
  • North American Service Network - Free!

  Estimated Payment

  $503.42/mo^*

  Apply Now

  • Get Approved (USA)
  • Get Approved (Canada)

  ^* Not all buyers will qualify. Contact us for details.

  We Deliver! Get An Estimate.

  Whether you pick it up, we bring it to you, or meet in the middle, taking delivery of your new RV couldn't be easier.

  Ship To:

  Calculate

  USA only, Please contact us for Canadian delivery quote.

• CONSTRUCTION

  • LCI Next Generation Frame Technology, “Z” frame design & powder coated
  • “Z” frame design using 12” I-beam with 10” I-beam drop
  • Sidewalls: 2” Vacuum Bonded, aluminum framed with high density block foam insulation (Extended Seasons PKG)
  • Roof: 5” Arched roof rafters 14” on center with two layers of batten insulation and radiant foil (Extended Seasons PKG)
  • Dual roof vents for breathable attic (Extended Seasons PKG)
  • Dicor PVC roof membrane with 20-year warranty
  • Main Floors: 5/8” tongue & groove plywood floors with batten insulation and radiant foil (Extended Seasons PKG)
  • Bath/Bedroom Floors: Welded aluminum frame with 5/8” tongue & groove plywood floors
  • Slide Box: 2” Laminated aluminum framed sidewalls & roof with 1” wood flooring
  • 2” Laminated aluminum framed front wall anchors sidewalls for added strength
  • EGS backing strips to anchor interior cabinets
  • Seamless roto-cast holding tanks
  • Underbelly Armor provides rigid road debris protection and comes in 4’ sections for easy accessibility to underbelly
  • 12V tank heat pads with underbelly forced air heat and radiant foil insulation (Extended Seasons PKG)
  • One piece molded front cap with batten insulation and radiant foil
  • Hydraulic slide system with 2.5” steel rams
  • Hydraulic pump station with manual overrides and slide selector switches
  • Electric above floor slides

  EASY SET-UP FEATURES

  • App controlled Command center
  • Main 12V power awning with L.E.D. light strip
  • Second 12V power awning with L.E.D. light strip (N/A 319RKLE)
  • Heated exterior water and convenience center: (Outside shower w/ quick connect hose, black tank flush, easy winterization kit, water heater bypass, power tank fill, Cable and Sat. Coax hookups & enclosed low point drains)
  • Battery disconnect located in main storage compartment
  • External LP quick connect
  • Hydraulic Selector Valves for Slide-outs
  • Hitch Light

  EXTERIOR FEATURES

  • Premium bright white fiberglass exterior
  • Front Cap: Painted high gloss gel coat fiberglass with amber L.E.D. running lights
  • Rear Roof ladder
  • XL folding entry assist handle
  • Marine grade exterior speakers
  • Roof mounted 200W solar prep (Essentials Camping PKG)
  • Enormous drop-frame pass-through storage compartment with forced air heat & L.E.D. strip lighting
  • Slam Latch compartment doors
  • LCI Solid Step (Essentials Camping PKG)
  • Extra large 32” X 76” entry door with friction hinge
  • L.E.D. light package: Entry step, Goose neck, Front cap & Entry door
  • Two vented battery prep boxes
  • Waste Hose storage compartment
  • Winegard 360+ (AM/FM, TV Antenna w/ 4G & Wi-Fi extender prep) (Essentials Camping PKG)
  • 1.5” Aluminum belt rail with caps (no exposed screws)
  • Dual 30 Ib. propane bottles with auto switch over

  TOWING FEATURES

  • Extended Turn front cap with hitch vision L.E.D. light strip
  • 21K Rhino pin box (Cardinal Limited PKG)
  • Prepped for rear and side cameras (Essentials Camping PKG)
  • G – Range tires
  • 7000 Ib. easy lube Dexter axles with Never-Adjust-Brakes (Essentials Camping PKG)
  • Road Armor Suspension (Cardinal Limited PKG)
  • Undermount spare tire & carrier
  • L.E.D. tail lights with back-up lights
  • 16” 8-lug aluminum wheels

  LIVING AREA FEATURES

  • Thomas Payne Collection theatre seats with power recline & massage (Essentials Camping PKG)
  • Thomas Payne Collection tri fold hide-a-bed sofa
  • Decorative slide room fascia
  • Residential carpet in main slide room
  • 15K BTU main A/C (Extended Seasons PKG)
  • 35K BTU furnace
  • 60 Amp converter with Charge Wizard
  • Electric Fireplace (Extended Seasons PKG)
  • Black metal exit assist handle
  • 50” L.E.D. TV with flip-up storage (366DVLE & 377MBLE) (Cardinal Limited PKG)
  • 50” Pop-up TV with window behind (319RKLE, 383BHLE & 379FLLE) (Cardinal Limited PKG)
  • End Tables with 110v outlets & 2.0 USB ports
  • Carbon monoxide detector
  • LP leak detector
  • Ceiling Fan (cardinal Limited PKG)

  KITCHEN FEATURES

  • 16 cu. ft. Residential Refrigerator w/ 1,000w invertor
  • 2-in-1 21” Oven/Range with L.E.D. knob indicators (Cardinal Limited PKG)
  • LG Solid surface counter tops (Essentials Camping PKG)
  • Residential contemporary cabinet hardware and accents
  • Single Bowl farm style black stainless-steel sink (Cardinal Limited PKG)
  • High rise, pull out, bullet kitchen faucet
  • Residential size pantry
  • Hidden hinges (Cardinal Limited PKG)
  • Power vent fan
  • 30” over-the-range microwave vented to exterior
  • Fluted decorative glass cabinet doors
  • Free Standing dinette and (4) chairs with flip up storage/ Optional Booth dinette (Cardinal Limited PKG)
  • Pull out spice racks next to residential refrigerator
  • Decorative Lighting above island
  • Full extension drawer guides

  BEDROOM FEATURES

  • Renovo Sleep systems mattress
  • True walk in closet design
  • Prepped for stackable washer & dryer with separate 20 AMP circuits
  • Dresser with three large drawers
  • Under bed storage
  • Two 110v bed side power outlets and 2.0 USB ports
  • 72x80 King Beds (N/A 319RKLE)
  • Decorative L.E.D. lit headboard
  • Two reading lights with individual controls

  BATHROOM FEATURES

  • 48” x 30” shower with integrated seat
  • 3 sliding glass shower door
  • Shower skylight
  • Heat & A/C duct
  • Porcelain toilet with foot flush
  • Power roof vent
  • 10 Gallon dsi gas/electric water heater (Extended Seasons PKG)
  • Towel bar

• Specification	Imperial	Metric
  Cargo Capacity	2,961 lbs	1,343.09 kg
  Dry Weight	12,539 lbs	5,687.59 kg
  GVWR	15,500 lbs	7,030.68 kg
  Pin Weight	2,330 lbs	1,056.87 kg
  Overall Height	13' 3"	4.04 m
  Overall Length	41' 4"	12.60 m
  Overall Width	96"	243.84 cm
  Black Water Tank	38 gal	143.85 l
  Fresh Water Tank	64 gal	242.27 l
  Gray Water Tank	76 gal	287.69 l
